Tcache Attack整理

tcache的堆块大小范围为0x20至0x410

可以将tcache当作一个类似于fastbin的单独链表, 只是它的check, 并没有fastbin那么复杂

tcache poisoning

通过覆盖tcache中的next, 不需要伪造任何chunk结构即可实现malloc到任何地址

demo如下, 在glibc 2.27的环境下运行

1
#include <stdio.h>
2

3
int main() {
4
    setvbuf(stdout, NULL, _IONBF, 0);
5
    setvbuf(stderr, NULL, _IONBF, 0);
6
    long long stack_var = 0;
7
    printf("We want to change the stack_var.Now stack_var = %x\n", stack_var);
8
    long long *chunk1 = malloc(0x30);
9
    long long *chunk2 = malloc(0x30);
10
    printf("chunk1 address is %p\n", chunk1);
11
    printf("chunk2 address is %p\n", chunk2);
12
    free(chunk2);
13
    free(chunk1);
14
    printf("Now, let's free and change chunk1's fd to stack_var\n");
15
    *(long long *)chunk1 = &stack_var;
9 collapsed lines
16
    printf("let's malloc chunk1 and chunk2 again");
17
    chunk1 = malloc(0x30);
18
    chunk2 = malloc(0x30);
19
    printf("chunk1 address is %p\n", chunk1);
20
    printf("chunk2 address is %p\n", chunk2);
21
    *(long long *)chunk2 = 0x41414141;
22
    printf("Now stack_var = %x\n", stack_var);
23
    return 0;
24
}

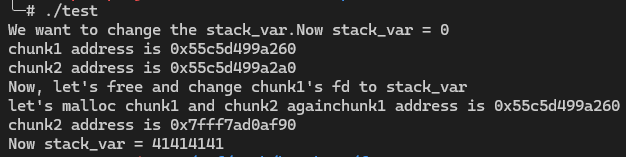

fd和next是同一块位置, 和fastbin相比, tcache只要挟持了next就可以将堆分配到任意位置, 不需要伪造或寻找现成的size字段, 因此更加便捷

同时需要注意的是, 在fastbin中, fd区域覆盖的是目标fake_chunk的prev_size地址; tcache中, next覆盖的是目标fake_chunk的user_data地址

tcache perthread corruption

tcache_perthread_struct 是整个tcache的管理结构, 如果能控制这个结构体, 那么无论我们malloc的size是多少, 地址都是可控的

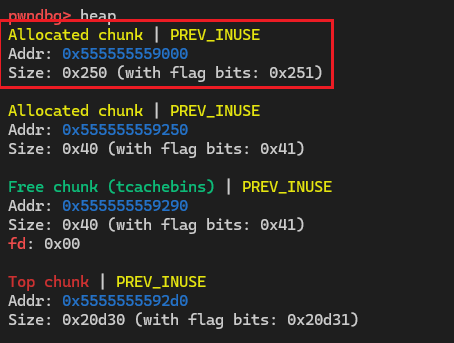

圈出来的堆块就是tcache_perthread_struct

tcache house of spirit

和fastbin attack中的house of spirit相似

demo如下:

1
#include <stdio.h>
2

3
int main() {
4
    setvbuf(stdout, NULL, _IONBF, 0);
5
    setvbuf(stderr, NULL, _IONBF, 0);
6
    malloc(0x30);
7
    long long chunks[10];
8
    chunks[1] = 0x41;
9
    chunks[9] = 0x1234;
10
    long long *fake_chunk = &chunks[2];
11
    printf("fake_chunk address is %p\n", fake_chunk);
12
    printf("let's free it\n");
13
    free(fake_chunk);
14

15
    printf("Now, malloc a chunk, the new chunk is the fake_chunk\n");
4 collapsed lines
16
    long long *chunk = malloc(0x30);
17
    printf("new chunk address is %p\n", chunk);
18
    return 0;
19
}

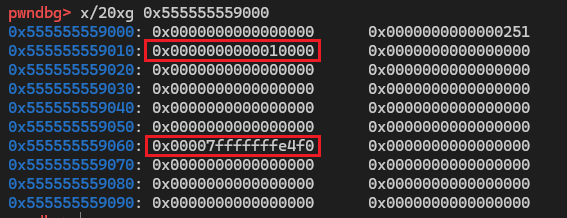

当free(fake_chunk)执行后, fake_chunk的地址会进入tcache_perthread_struct结构体
